MediaPlayer Kit

Function description

The MediaPlayer Kit is a powerful player that supports playing local and online media resources. With this player, you can either locally play media resources or synchronously share currently playing media resources with remote users in the Agora channel.

Usage notice

• Currently supported media formats: Local files in AVI, MP4, MP3, MKV, and FLV formats; online media streams using HTTP, HTTPS, RTMP and RTSP protocols.
• When locally playing media resources, you only need the separate MediaPlayer Kit. When synchronously sharing media resources with remote users, you need to use the MediaPlayer Kit, Agora Native SDK, and RtcChannelPublishPlugin at the same time. The MediaPlayer Kit supports the local user to use the player function, the Native SDK supports interactive live streaming scenarios, and the RtcChannelPublishPlugin supports publishing media streams to remote users in Agora channel.
• MediaPlayer Kit only supports playing videos with a frame rate less than 60fps (excluding).

Set up the development environment

Prerequisites

• Xcode 9.0 or later
• An iOS device running iOS 9.0 or later

Open the specified ports in Firewall Requirements if your network has a firewall.

A valid Agora account (Sign up for free) is necessary when sharing media resources to remote users.

Create an iOS project

Now, let's build an iOS project from scratch.

Integrate the MediaPlayer Kit

Choose either of the following methods to integrate the MediaPlayer Kit into your project.

Method 1: Automatically integrate the MediaPlayer Kit with CocoaPods

Only applies to MediaPlayer Kit v1.1.2 and later.

1. Ensure that you have installed CocoaPods before the following steps. See the installation guide in Getting Started with CocoaPods.

2. In Terminal, go to the project path and run the pod init command to create a Podfile in the project folder.

3. Open the Podfile, delete all contents and input the following contents. Remember to change Your App to the target name of your project, and change version to the version of the MediaPlayer Kit which you want to integrate.

    target 'Your App' do
        pod 'AgoraMediaPlayer_iOS', '~> version'
    end

4. In Terminal, run the pod update command to update the local libraries.

5. Run the pod install command to install the MediaPlayer Kit. Once you successfully install the Kit, it shows Pod installation complete! in Terminal, and you can see an xcworkspace file in the project folder.

6. Open the generated xcworkspace file in Xcode.

Method 2: Manually add the MediaPlayer Kit files

1. Go to Downloads, download the latest version of the MediaPlayer Kit, and unzip the download package.

2. Add the AgoraMediaPlayer.framework file in the libs folder to the project folder.

3. In Xcode, click TARGETS > Project Name > General > Frameworks, Libraries, and Embedded Content to change the status of AgoraMediaPlayer.framework to Embed & Sign.

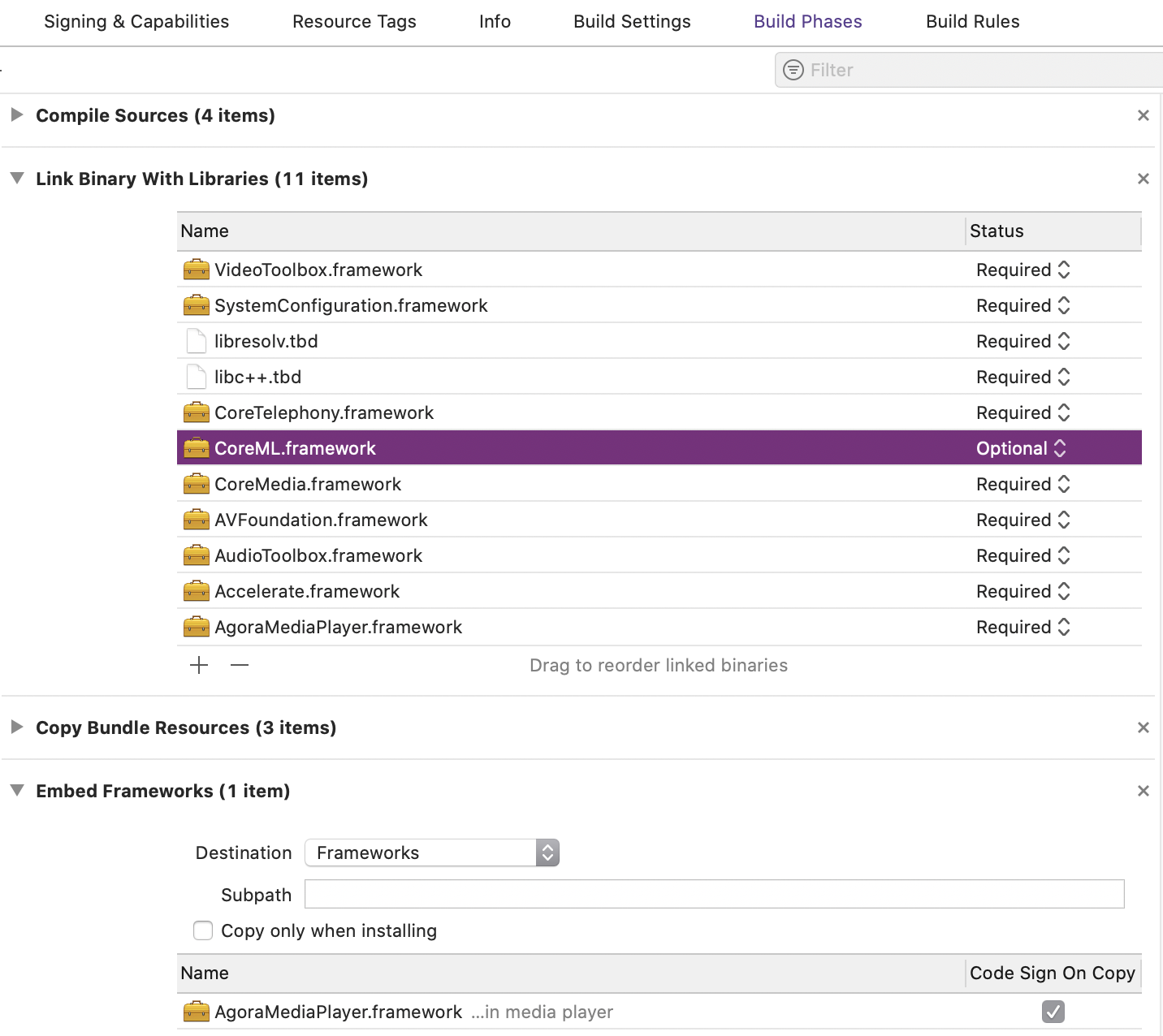

4. Go to the TARGETS > Project Name > Build Phases > Link Binary with Libraries menu, and click + to add the following frameworks and libraries. To add the AgoraMediaPlayer.framework file, remember to click Add Other... after clicking +.

   • AgoraMediaPlayer.framework
   • Accelerate.framework
   • AudioToolbox.framework
   • AVFoundation.framework
   • CoreMedia.framework
   • CoreML.framework
   • CoreTelephony.framework
   • libc++.tbd
   • libresolv.tbd
   • SystemConfiguration.framework
   • VideoToolbox.framework



5. Add the following permissions in the info.plist file for device access according to your needs:

   Key	Type	Value
   Privacy - Microphone Usage Description	String	To access the microphone, such as for a video call.
   Privacy - Camera Usage Description	String	To access the camera, such as for a video call.

Integrate the Native SDK

Version requirements: 2.4.0 or later

Integration steps: See Integrate the Native SDK.

Integrate the RtcChannelPublishPlugin

1. Download the source code of the RtcChannelPublishPlugin.
2. Add the source code of the RtcChannelPublishPlugin to your project folder.

Implementation

Play media resources locally

After integrating the MediaPlayer Kit, follow these steps to implement the local playback function.

Create a player instance

Create an instance of AgoraMediaPlayer.

To play different media resources simultaneously, you should create multiple instances.

Receive event callbacks
Override the AgoraMediaPlayerDelegate delegate method to receive the following event callbacks:

• didChangedToPosition, which reports the current playback progress.
• didChangedToState, which reports the playback state change.
• didOccurEvent, which reports the result of a seek operation to a new playback position.
• didReceiveData, which occurs each time the player receives the media metadata.
• didReceiveAudioFrame, which occurs each time the player receives an audio frame.
• didReceiveVideoFrame, which occurs each time the player receives a video frame.

By listening for these events, you can have more control over the playback process and enable your app to support data in custom formats (media metadata). If an exception occurs, you can use these event callbacks for troubleshooting.

Preparations for playback

1. Call the setView method in the AgoraMediaPlayer interface to set the render view of the player.

2. Call the setRenderMode method in the AgoraMediaPlayer interface to set the rendering mode of the player's view.

3. Call the open method in the AgoraMediaPlayer interface to open the media resource. The media resource path can be a network path or a local path. Both absolute and relative paths are supported.

   Do not proceed until you receive the didChangedToState callback reporting AgoraMediaPlayerStateOpenCompleted(2).

4. Call the play method in the AgoraMediaPlayer interface to play the media resource locally.

Adjust playback settings

You can call several other methods in the AgoraMediaPlayer interface to implement various playback settings:

• Pause/resume playback, adjust playback progress, adjust local playback volume, and so on.
• Get the total duration of the media resource, get the current playback progress, get the current playback state, get the number of media streams in the media resource and detailed information about each media stream.

Stop playback

1. Call the stop method in the AgoraMediaPlayer interface to stop playback.
2. Set view in the setView method to NULL to release the view.
3. Use the iOS ARC memory management mechanism to release the AgoraMediaPlayer instance.

Sample code

_mediaPlayerKit = [[AgoraMediaPlayer alloc] initWithDelegate:self];
[_mediaPlayerKit setView:self.containerView];
[_mediaPlayerKit open:url startPos:0];
[_mediaPlayerKit play];
[_mediaPlayerKit stop];
[_mediaPlayerKit seekToPosition:value];
[_mediaPlayerKit adjustVolume:volume];

 // Receives event callbacks.
- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
       didChangedToState:(AgoraMediaPlayerState)state
                   error:(AgoraMediaPlayerError)error;
{
     //todo
}


- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
    didChangedToPosition:(NSInteger)position;
{
}


- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
          didOccurEvent:(AgoraMediaPlayerEvent)event;
{
     //todo
}


- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
          didReceiveData:(NSString *)data
                  length:(NSInteger)length;
{
     //todo
}


- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
    didReceiveVideoFrame:(CVPixelBufferRef)
{
    //todo
}


- (void)AgoraMediaPlayer:(AgoraMediaPlayer *_Nonnull)playerKit
    didReceiveAudioFrame:(CMSampleBufferRef)
{
    //todo
};

Share media resources to remote

After integrating the MediaPlayer Kit, the Agora Native SDK, and the RtcChannelPublishPlugin, follow these steps to synchronously share media resources played by the local user to all the remote users in the Agora channel.

Instantiate required objects

1. Instantiate an AgoraRtcEngineKit object.
2. Instantiate the AgoraMediaPlayer and RtcChannelPublishHelper objects.

Enable the player to complete playback preparations

Register the player, audio, and video observer objects, and complete the preparations for playback. See Play media resources locally for details.

Do not proceed until you receive the didChangedToState callback reporting AgoraMediaPlayerStatePlaying(3).

Enable the local user to join the channel by using the SDK

Refer to the RTC quickstart guide for details about how to enable the local user to join the LIVE_BROADCASTING channel in the role of BROADCASTER:

1. Call the setChannelProfile method to set the channel profile to LIVE_BROADCASTING.

2. Call the setClientRole method to set the local user role as the host.

3. Call the enableVideo method to enable the video module.

4. Call the joinChannel method to enable the local user to join the channel.

   Do not proceed until you receive the joinSuccessBlock or didJoinChannel callback.

Start sharing by using the helper

1. Call the attachPlayerToRtc method to bundle the player with the Agora channel. And the playback window fully occupies the local user's view.

2. Call the publishVideo/publishAudio method to share (publish) the video/audio stream in the media resource to remote users in the Agora channel.

3. Call the adjustPublishSignalVolume method to adjust the the playback volume heard by the remote user.

Cancel sharing by using the helper

1. Call the unpublishVideo/unpublishAudio method to unshare or unpublish the video/audio stream in the media resource.

2. Call the detachPlayerFromRtc method to unbind the player from the Agora channel.

3. (Optional) Call the setVideoSource method to switch the player's window back to the local user's view and enable the remote users to see the local user again.

Sample code

_rtcEnginekit = [AgoraRtcEngineKit sharedEngineWithAppId:@"YOUR_APPID" delegate:self];
[_rtcEnginekit setChannelProfile:AgoraChannelProfileLiveBroadcasting];
[_rtcEnginekit setClientRole:AgoraClientRoleBroadcaster];
[_rtcEnginekit enableVideo];
[_rtcEnginekit joinChannelByToken:token channelId:channelid info:""  uid:"" joinSuccess:NULL];
[[AgoraRtcChannelPublishHelper shareInstance] attachPlayerToRtc:_mediaPlayerKitOC RtcEngine:_rtcEnginekit enableVideoSource:true];
[[AgoraRtcChannelPublishHelper shareInstance] publishAudio];
[[AgoraRtcChannelPublishHelper shareInstance] publishVideo];
[[AgoraRtcChannelPublishHelper shareInstance] detachPlayerFromRtc];

if(!_defaultCamera)
{
    _defaultCamera = [[AgoraRtcDefaultCamera alloc] init];
}
[_rtcEngineKit setVideoSource:NULL];
[_rtcEngineKit setVideoSource:_defaultCamera];

Get the log file

The log file contains all the log events generated by the mediaplayer kit during runtime. The path of the log file is App Sandbox/Library/caches/agoraplayer.log.

API documentation

See the API documentation.
