Pre-call Network and Device Tests

Description

In real-time scenarios requiring high quality, conducting tests before joining a channel helps troubleshoot in advance and improve the overall user experience. You can perform the following pre-call tests:

• Network test: Detects the network quality by probing the uplink and downlink last-mile network quality.
• Device test: Checks if the audio and video devices work properly.

This article describes how to implement these tests.

Sample project

Agora provides an open-source macOS sample project on GitHub that implements pre-call detection in the PrecallTest.swift file. You can download the sample project to try it out or refer to the source code.

Network probe test

As of v2.4.0, the Agora RTC Native SDK provides the startLastmileProbeTest method that probes the last-mile network before joining a channel and returns statistics about the network quality, including round-trip latency, packet loss rate, and network bandwidth.

Implementation

Before proceeding, ensure that you have implemented basic real-time functions in your project.

1. Call startLastmileProbeTest to start the network probe test before joining a channel or switching the user role. You need to specify the expected upstream and downstream bitrate in this method.
2. After the method call, the SDK returns the following two callbacks
   • lastmileQuality: Triggered two seconds after startLastmileProbeTest is called. This callback provides ratings of the uplink and downlink network quality and reflects the user experience.
   • lastmileProbeResult: Triggered 30 seconds after startLastmileProbeTest is called. This callback provides real-time statistics of the network quality and is more objective.
3. After getting the network quality statistics, call stopLastmileProbeTest to stop the network probe test.

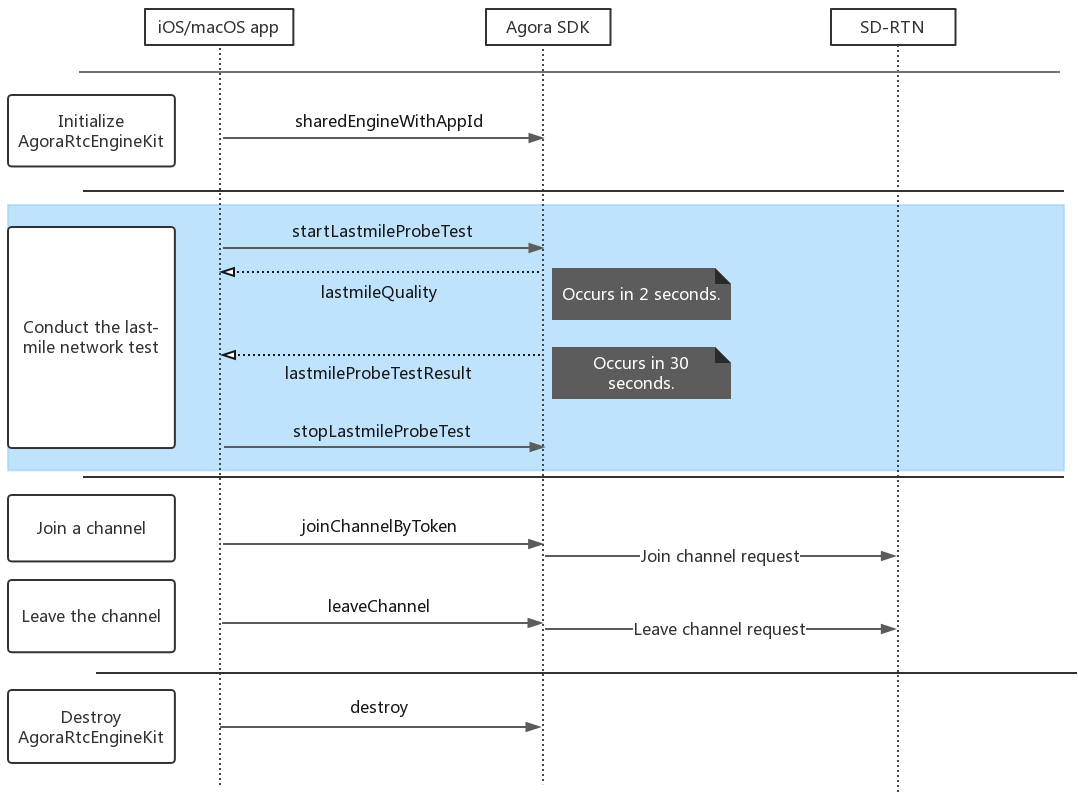

The API call sequence is as follows:

Sample code

Refer to the following sample code to implement this function in your project.

// Swift
let config = AgoraLastmileProbeConfig()
// Probes the uplink network.
config.probeUplink = true;
// Probes the downlink network.
config.probeDownlink = true;
// The expected uplink bitrate(bps). The value range is [100000,5000000].
config.expectedUplinkBitrate = 100000;
// The expected downlink bitrate(bps). The value range is [100000,5000000]
config.expectedDownlinkBitrate = 100000;
// Call startLastmileProbeTest to start the network probe test.
agoraKit.startLastmileProbeTest(config)

// Swift
// Receives the lastmileQuality callback two seconds after calling startLastmileProbeTest. This callback is triggered once every 2 seconds.
func rtcEngine(_ engine: AgoraRtcEngineKit, lastmileQuality quality: AgoraNetworkQuality) {
    lastmileResultLabel.stringValue = "Quality: \(quality.description())"
}

// Receives the lastmileProbeResult callback 30 seconds after calling startLastmileProbeTest. This callback provides more detailed network quality statistics.
func rtcEngine(_ engine: AgoraRtcEngineKit, lastmileProbeTest result: AgoraLastmileProbeResult) {
    // The round trip time delay.
    let rtt = "Rtt: \(result.rtt)ms"
    // The downlink network bandwidth.
    let downlinkBandWidth = "DownlinkAvailableBandwidth: \(result.  downlinkReport.availableBandwidth)Kbps"
    // The downlink jitter buffer.
    let downlinkJitter = "DownlinkJitter: \(result.downlinkReport.  jitter)ms"
    // The downlink packet loss rate.
    let downlinkLoss = "DownlinkLoss: \(result.downlinkReport.  packetLossRate)%"

    // The uplink network bandwidth.
    let uplinkBandwidth = "UplinkAvailableBandwidth: \(result.  uplinkReport.availableBandwidth)Kbps"
    // The uplink jitter buffer.
    let uplinkJitter = "UplinkJitter: \(result.uplinkReport.jitter)  ms"
    // The uplink packet loss rate.
    let uplinkLoss = "UplinkLoss: \(result.uplinkReport.  packetLossRate)%"

    lastmileProbResultLabel.stringValue = [rtt, downlinkBandwidth, downlinkJitter, downlinkLoss, uplinkBandwidth, uplinkJitter, uplinkLoss].joined(separator: "\n")
}

// Swift
// Stops the last-mile network probe test.
// You can call stopLastmileProbeTest either within the lastmileProbeResult callback, or at other time before joining a channel.
agoraKit.stopLastmileProbeTest()

API reference

• startLastmileProbeTest
• stopLastmileProbeTest
• lastmileQuality
• lastmileProbeResult

Device test

To ensure smooth communications, Agora recommends conducting a media device test before joining a channel to check whether the microphone or camera works properly. This function applies to scenarios that have high-quality requirements, such as online education.

Before proceeding, ensure that you have implemented basic real-time functions in your project.

Refer to the following steps to test audio and video devices.

• Choose either of the following ways to test the audio devices:
  • Call startEchoTestWithInterval to test if audio devices and network connections are working properly.
  • Call startRecordingDeviceTest to test audio recording devices, and call startPlaybackDeviceTest to test audio playback devices.
  • Call startAudioDeviceLoopbackTest to test the audio device loopback (including audio recording and playback devices).
• Call startCaptureDeviceTest to test video capture devices.
• Call startEchoTestWithConfig to test the system's audio devices, video devices, and network connections.

Audio call loop test

Call the startEchoTestWithInterval method to test if audio devices, such as the microphone and speaker, are working properly.

To conduct the test, call startEchoTestWithInterval, and set the interval parameter in this method to notify the SDK when to report the result of this test. The user speaks, and if the recording plays back within the set time interval, audio devices and network connections are working properly.

// Swift
@IBAction func doEchoTest(sender: NSButton) {
    agoraKit.startEchoTest(withInterval: 10)
    showPopover(isValidate: false, seconds: 10) {[unowned self] in
        self.showPopover(isValidate: true, seconds: 10) {[unowned self] in
            self.agoraKit.stopEchoTest()
        }
    }
}

Audio and video call loop test

Call startEchoTestWithConfig to test whether the system's audio devices, video devices, and network connections are working properly.

To conduct the test, call startEchoTestWithConfig, and set the config parameter in this method. The user needs to make a sound or face the camera. The audio or video is output after about two seconds. If the audio playback is normal, the audio device and the user's upstream and downstream network are working properly; if the video playback is normal, the video device and the user's upstream and downstream network are working properly.

// Swift
@IBAction func doEchoVideoTest(sender: NSButton) {
    if(echoTesting){
        agoraKit.stopEchoTest()
        echoTestBtn.title = "Start Video/Audio Test".localized
        echoTesting = false
    }
    else{
        let config = AgoraEchoTestConfiguration()
        echoTestBtn.title = "Stop Video/Audio Test".localized
        config.channelId = "randomChannel"
        config.view = videos[0]
        config.enableAudio = true
        config.enableVideo = true
        agoraKit.startEchoTest(withConfig: config)
        echoTesting = true
    }
}

Audio capturing device test

Call the startRecordingDeviceTest method to test whether the local audio capturing device, such as a microphone, is working properly.

Follow these steps to conduct the test:

1. Listen for the reportAudioDeviceTestVolume callback.
2. Call startRecordingDeviceTest, and use the indicationInterval parameter in this method to set the time interval (ms) at which the SDK returns the reportAudioDeviceTestVolume callback.
3. When the user speaks, the SDK captures the local audio using an audio capturing device and reports the volume of the audio capturing device in the reportAudioDeviceTestVolume callback.
4. When the test finishes, call the stopRecordingDeviceTest method to stop the current test.

// Swift
agoraKit.startRecordingDeviceTest(1000)

agoraKit.stopRecordingDeviceTest()

Audio playback device test

Call the startPlaybackDeviceTest method to test whether the local audio playback device, such as a speaker, is working properly.

Follow these steps to conduct the test:

1. Listen for the reportAudioDeviceTestVolume callback.
2. Specify an audio file for playback, and call startPlaybackDeviceTest.
3. The SDK plays the audio file using a local audio playback device and triggers the reportAudioDeviceTestVolume callback to report the volume of the audio playback device.
4. When the test finishes, call the stopPlaybackDeviceTest method to stop the current test.

// Swift
agoraKit.startPlaybackDeviceTest("audio file path")

agoraKit.stopPlaybackDeviceTest()

Audio device loopback test

Call the startAudioDeviceLoopbackTest method to test whether the local audio devices, including the microphones and speakers, are working properly.

Follow these steps to conduct the test:

1. Listen for the reportAudioDeviceTestVolume callback.
2. Call startAudioDeviceLoopbackTest, and use the indicationInterval parameter in this method to set the time interval (ms) at which the SDK returns the reportAudioDeviceTestVolume callback.
3. When the user speaks, the SDK captures the local audio using an audio capturing device and plays it through an audio playback device. The SDK triggers two reportAudioDeviceTestVolume callbacks to report the volume of the audio capturing and playback devices.
4. When the test finishes, call the stopAudioDeviceLoopbackTest method to stop the current test.

// Swift
agoraKit.startAudioDeviceLoopbackTest(50)

agoraKit.stopAudioDeviceLoopbackTest()

Video capture device test

After calling the enableVideo method, call the startCaptureDeviceTest method to test whether the local video devices, such as the camera, are working properly.

To conduct the test, specify a window view that displays the image. If you can see the local video view, the video devices work properly.

When the test finishes, call the stopCaptureDeviceTest method to stop the current test.

// Swift
agoraKit.startCaptureDeviceTest(videos[0])

agoraKit.stopCaptureDeviceTest()

API reference

• startEchoTestWithInterval
• startEchoTestWithConfig
• stopEchoTest
• startRecordingDeviceTest
• stopRecordingDeviceTest
• startPlaybackDeviceTest
• stopPlaybackDeviceTest
• startCaptureDeviceTest
• stopCaptureDeviceTest
• startAudioDeviceLoopbackTest
• stopAudioDeviceLoopbackTest
• reportAudioVolumeIndicationOfSpeakers
• reportAudioDeviceTestVolume

Considerations

• Calling startLastmileProbeTest for pre-call network quality detection consumes network traffic. Therefore, after calling this method, Agora recommends not calling any other method until you receive the lastmileProbeTest callback.
• The lastmileQuality callback may return Unknown the first time it is triggered. Subsequent callbacks will return the test results.
• When conducting the last-mile probe test, the voice SDK uses a fixed bitrate of 48 Kbps. The video SDK adjusts the actual bitrate according to the video profile.
• In an interactive live streaming channel, only a host can call startEchoTestWithInterval.
• Once the echo test ends, you must call stopEchoTest to stop it. Otherwise, you cannot conduct another echo test or join a call using joinChannelByToken.
