Call Details Breakdown

This page introduces how to navigate through the three Call Details subpages.

Call Details homepage

To view the Call Details homepage, follow these steps:

1. Use Call Search to find the call, then click Call Details in the Action column.
   • If the number of Accumulated Call Users (ACU) is greater than or equal to 50, you first enter the Call Overview page. Click the Call Details tab on the top to switch.
   • If the number of ACU is less than 50, you enter the Call Details homepage.
2. Add users through one of the following ways:
   • Add one by one: Enter the user ID, and click Add User.
   • Add in a batch: Click Advanced search, add one or more filters as needed, and then click Search. In the returned list, select the users you want to add, and click Save.
3. Display or hide the audio and video quality metrics for the added users: Click the switch in the View metrics column. You can turn on the switch for a maximum of 20 users at the same time.
4. Select the time range you want to inspect. If the time range changes, the audio and video quality metrics data is updated.

Key events

For each user whose View metrics switch is turned on, this section shows their events during the selected time range in two views: Timeline and list.

Timeline

The circles on the timeline represent events. A larger circle means more events occurred at that time. If a noteworthy event occurred, the circle is marked red.

In the timeline view, you can do the following:

• Hover your mouse over a circle to view event logs.
• Click the zoom-in or zoom-out icon in the upper right corner to adjust the time scale.
• Select one or more event types using the drop-down menu in the upper right corner, including login and logout, network transmission, video sending, and audio sending.
• Click List view in the upper right corner to switch to the list view.

List

The list view has three columns: Time, event type, and event. The list is displayed side by side with the corresponding user's audio and video quality metrics.

In the list view, you can do the following:

• Select one or more event types using the drop-down menu in the upper right corner, including login and logout, network transmission, video sending, video receiving, audio sending, and audio receiving.
• Click Timeline view in the upper right corner to switch to the timeline view.

Audio and video quality metrics

With the core audio and video metrics displayed in the sender's and receiver's view, this section shows the quality of experience within the selected time range for each user whose View metrics switch is turned on (referred to as "selected users").

The metrics are defined in User-specific metrics.

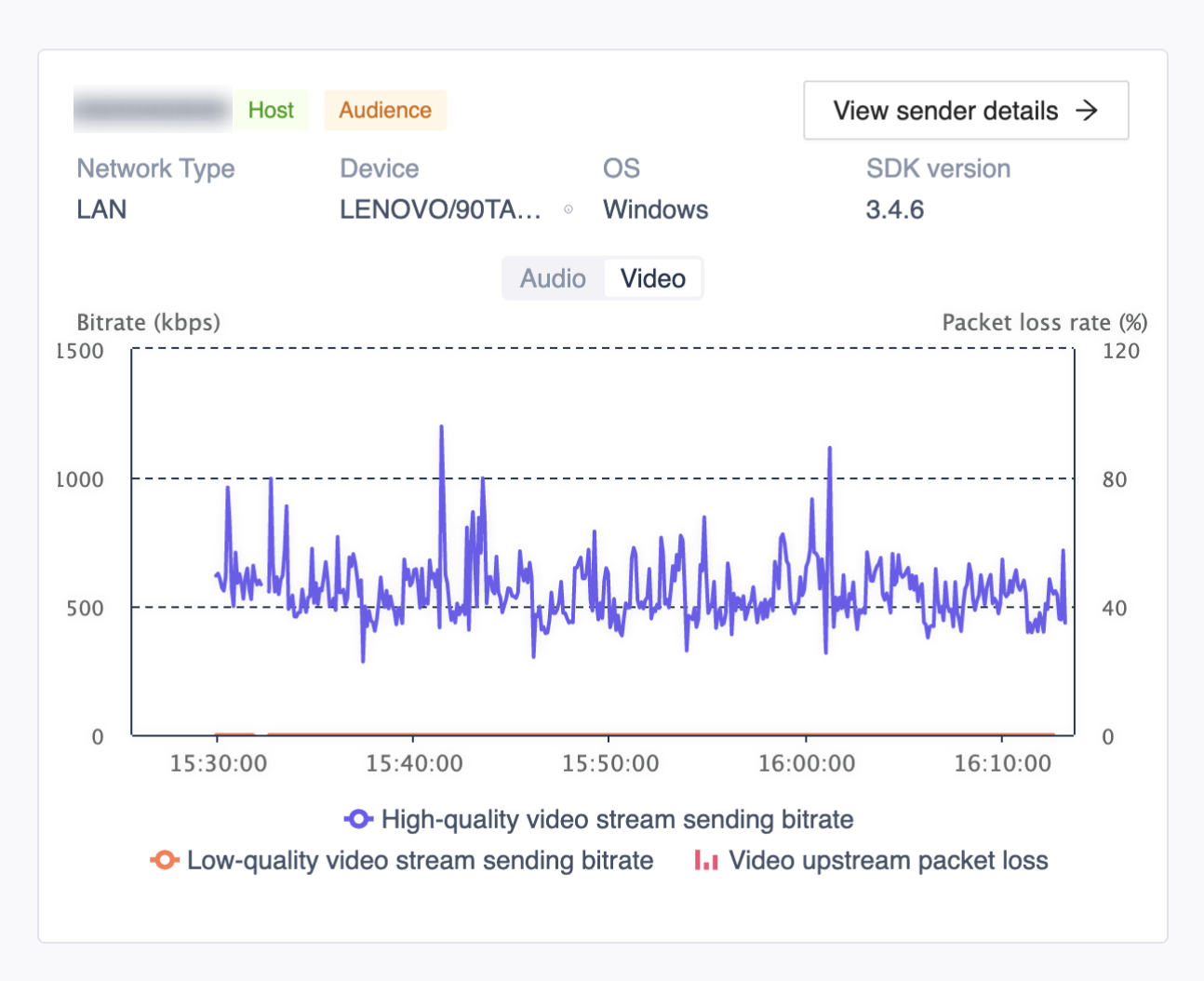

Sender's view

Click Sender's view, and click Audio or Video. You can see the sending bitrates and upstream packet loss rates for all senders among the selected users.

Follow these steps to locate abnormal senders:

• If the line chart has many red glitches, the upstream packet loss rate might be high. Click View sender details in the upper right corner to enter the sender details page for further inspection.
• If an exclamation mark appears in the upper right corner, the user might encounter an issue that significantly affects the user experience. Click the exclamation mark to enter this user's Call diagnosis (Beta) page.

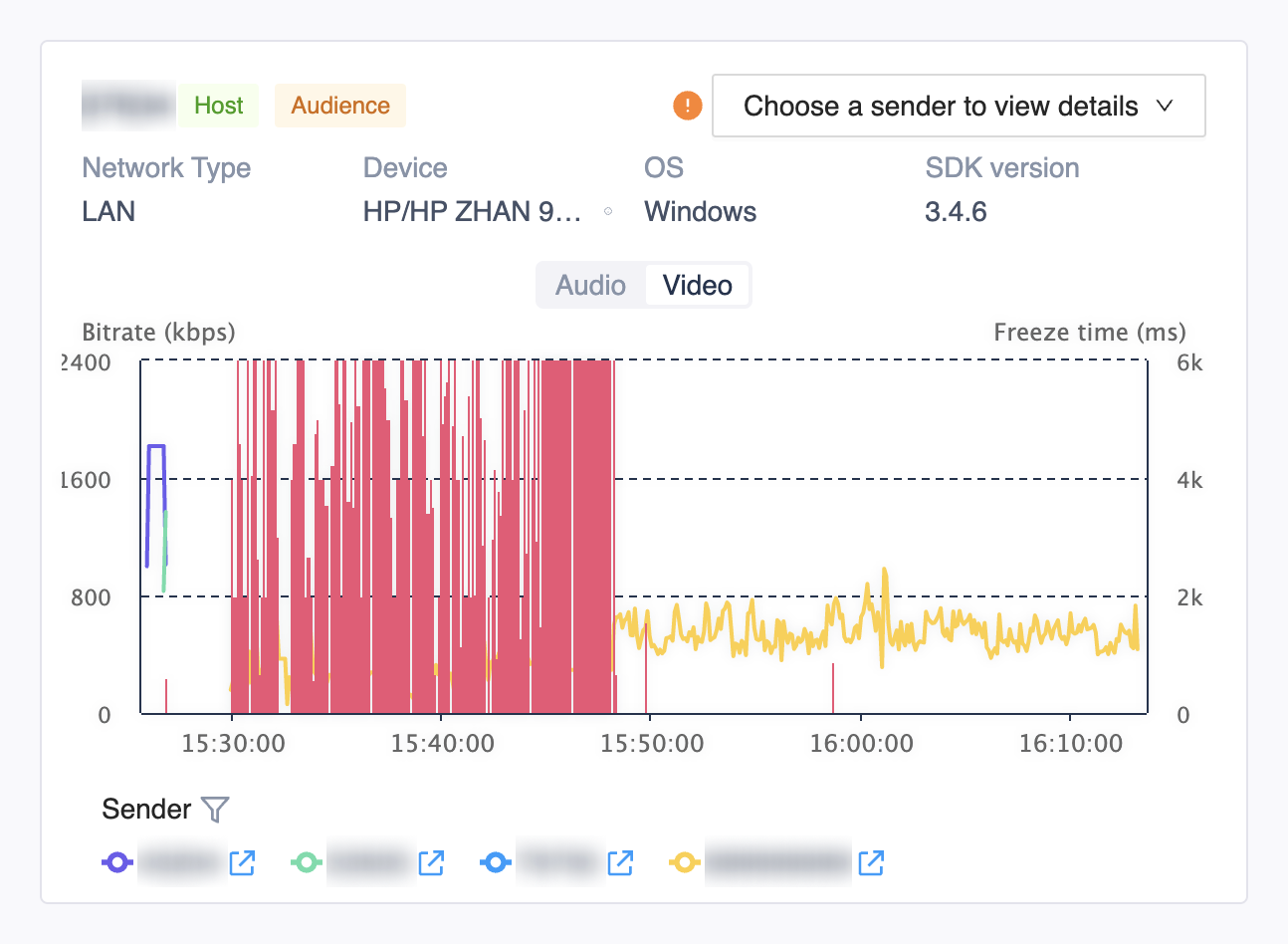

Receiver's view

Click Receiver's view, and click Audio or Video. You can see the receiving bitrates and freeze time for all receivers among the selected users. If audio and video streams from multiple senders are received, they are marked in different colors on the line chart.

Follow these steps to locate abnormal receivers:

• If the line chart has many red glitches, the receiver might experience significant freezing issues. In the upper right corner of the line chart, click Inspect a remote client, and select the corresponding sender's user ID from the drop-down menu. You enter the end-to-end details page for further inspection.
• If an exclamation mark appears in the upper right corner, the user might encounter an issue that significantly affects the user experience. Click the exclamation mark to enter this user's Call diagnosis (Beta) page.

End-to-end details page

This page provides the following information for the selected sender/receiver pair:

• Call Diagnosis conclusions. If the selected receiver and sender do not encounter significant experience issues, this information is hidden.
• Quality metrics, including network status, device status, and audio and video quality. See User-specific metrics.
• Key events, including a timeline view and a list view. In the list view, you can filter event types using the drop-down menu in the upper left corner.

Sender details page

This page contains the following information for the selected sender:

• Call Diagnosis conclusions. If the selected sender does not encounter significant experience issues, this information is hidden.
• Quality metrics, including network status, device status, and audio and video quality. See User-specific metrics .
• Key events, including a timeline view and a list view. You can filter event types using the drop-down menu in the upper right corner.
